F43 & R46 Ride Sirris Suspension Ultra Bee
Introducing Sirris Suspension. A new era in E-Moto suspension performance is here.
Unleash the Ride with Sirris Suspension!
Upgrade your E-Moto experience with Sirris suspension products that blend precision engineering, durability, and race-ready performance! Designed for thrill-seekers and trailblazers alike, Ride Sirris suspension systems are the secret sauce to a smooth, responsive ride.
Don't just ride; dominate the track and trails! Transform your Ultra Bee into an off-road beast with the confidence of Sirris precision. Say goodbye to bumps and hello to pure exhilaration!
Get ready to elevate your ride—let’s hit the trails!
TRANSFORM YOUR BIKE INTO A TRUE SPEED DEMON
The F43 front fork — Super responsive. Purpose-tuned. Pressure balanced. With 246 mm of ultra plush travel, its true moto architecture is made for the most aggressive riding and can be tuned to your liking.
THE PERFECT PAIR
The R46 rear shock - Pressure balanced. Fully adjustable. Optimized for E-Moto.
Revolutionize your bike's potential with harmonized suspension performance front and back. The ultimate suspension package is here.
TRUE SYMMETRICAL CLOSED CARTRIDGE F43 Fork
Balanced Performance
Balanced load, race-ready, high performance. No matter how hard you ride or how
many laps you take, closed cartridge will never fade and will always feel predictable.
Hydraulic Bump Stop
Gives rider a soft landing at max stroke even on the most aggressive impacts.
NO COMPROMISES
Dual Oil Circuits for Optimum Performance
Completely separate lubrication and damping oils allows us to optimize damping performance without compromise.
High Quality Materials + Surface Treatments
All cartridge bodies and outer tubes are 7000 series aluminum for maximum strength, finished in type 3 hard anodized for scratch resistance and durability. Hard chrome stanchions and wrap around guards keep it performing like new for longer.
EVERY RIDER EVERY RIDING STYLE

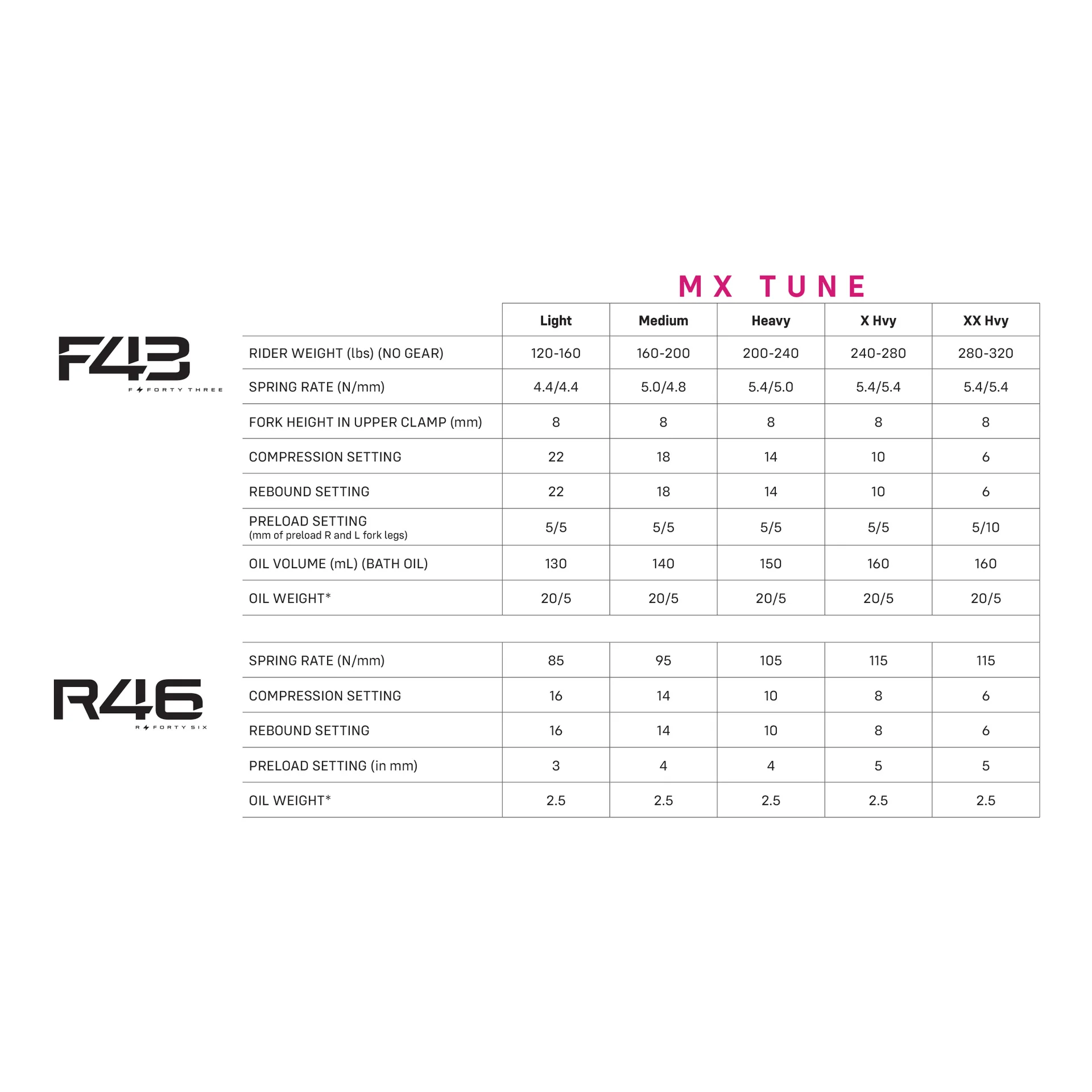

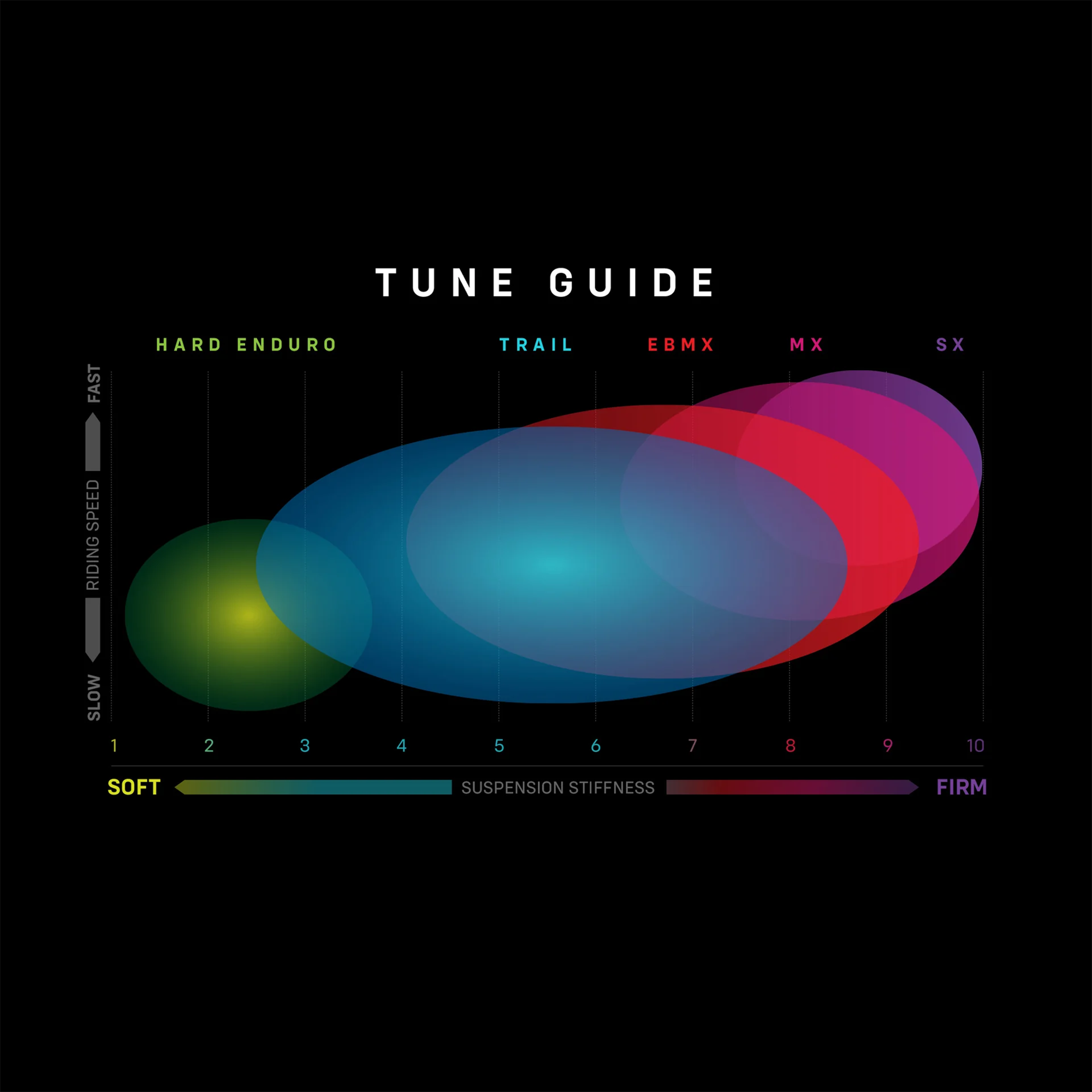

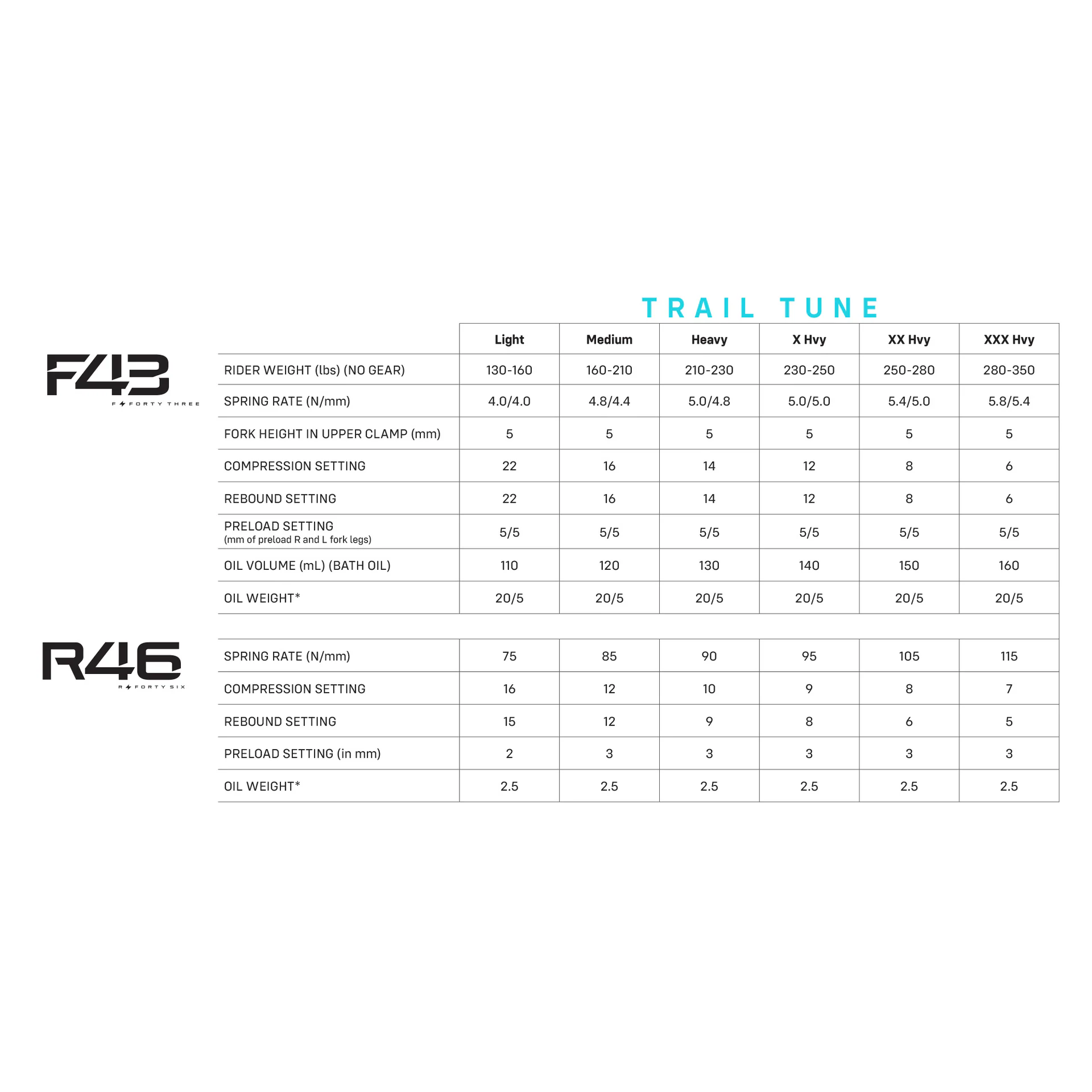

Ultimate Suspension Tuning
Fully tunable valving on compression and rebound, with spring rates matched to rider
weight and riding type. Adapt your suspension setup for different types of rides,
enhancing overall riding experience.
Plug-and-play
Direct swap, no other modifications or additional parts needed to upgrade a stock Ultra
Bee. Comes with dust seal and headset bearing installed on steerer tube for quick
install. Triple clamps and guards fit directly with Ultra Bee fairing and cable routing.
Compression, rebound, and preload adjust
Custom spring rates for all riding styles and rider sizes.
High tensile lightweight springs
Weighs only 8.8 lbs (4 kg) per leg (standard configuration spring)
R46 Rear Shock
EXCEPTIONAL RESPONSIVENESS
Ultimate Suspension Tuning
Fully tunable valving on compression and rebound, with spring rates matched to rider weight and riding type. Adapt your suspension setup for different types of rides,
enhancing overall riding experience.
TUNING WITHOUT COMPROMISE
LSC (Low Speed Compression)
Superior pressure balance and frequency response providing the ultimate overall responsiveness and performance for riders.
Optional DSC note: We're fine tuning the DSC now and it will be available in a couple months (likely early 2025). The DSC will offer a wider adjustment range than the LSC. LSC and DSC fit in the same cavity and are cross compatible (with a rebuild). Both will be offered as service parts. (ie. if you purchase the current LSC now, it can be serviced and tuned to add DSC later. More details to follow)
Made For You
Tunable to any rider style and condition. Personalize to rider weight up to 300 lbs (135
kg) with high-tensile steel spring rate options.
BUILT TO LAST
High Durability Finishing
Type 3 hard anodized body cap, body, reservoir, end cap, spring hardware, and clevis.
Induction heat treated, hard chrome hollow shaft. The rear shock will look new, even
after thousands of miles.
Extremely Easy to Rebuild
Fully serviceable design ensures easy rebuilds and custom tuning.
Direct Swap
Easy installation, 320 mm length (85 mm stroke) bolts directly onto a stock Ultra Bee.
STOCK ULTRA BEE TRIANGLE FITMENT:
For guaranteed fitment on your Surron Ultra Bee, we highly recommend the Sirris rear triangle installed during the shock installation procedure.
The Sirris Shock is designed to offer the maximum possible piston size and still fit within the stock linkage. Tolerances on each stock Ultra Bee vary. Light contact between spring OD and stock triangle may occur. We highly recommend our higher clearance triangle to prevent this.
NOTE: Some aftermarket triangles may have significant interference that could damage the shock and/or triangle. Do not install the Sirris shock if any interference is detected!
Lightweight
Weighs only 3.9 lbs (1.76 kg) plus spring.

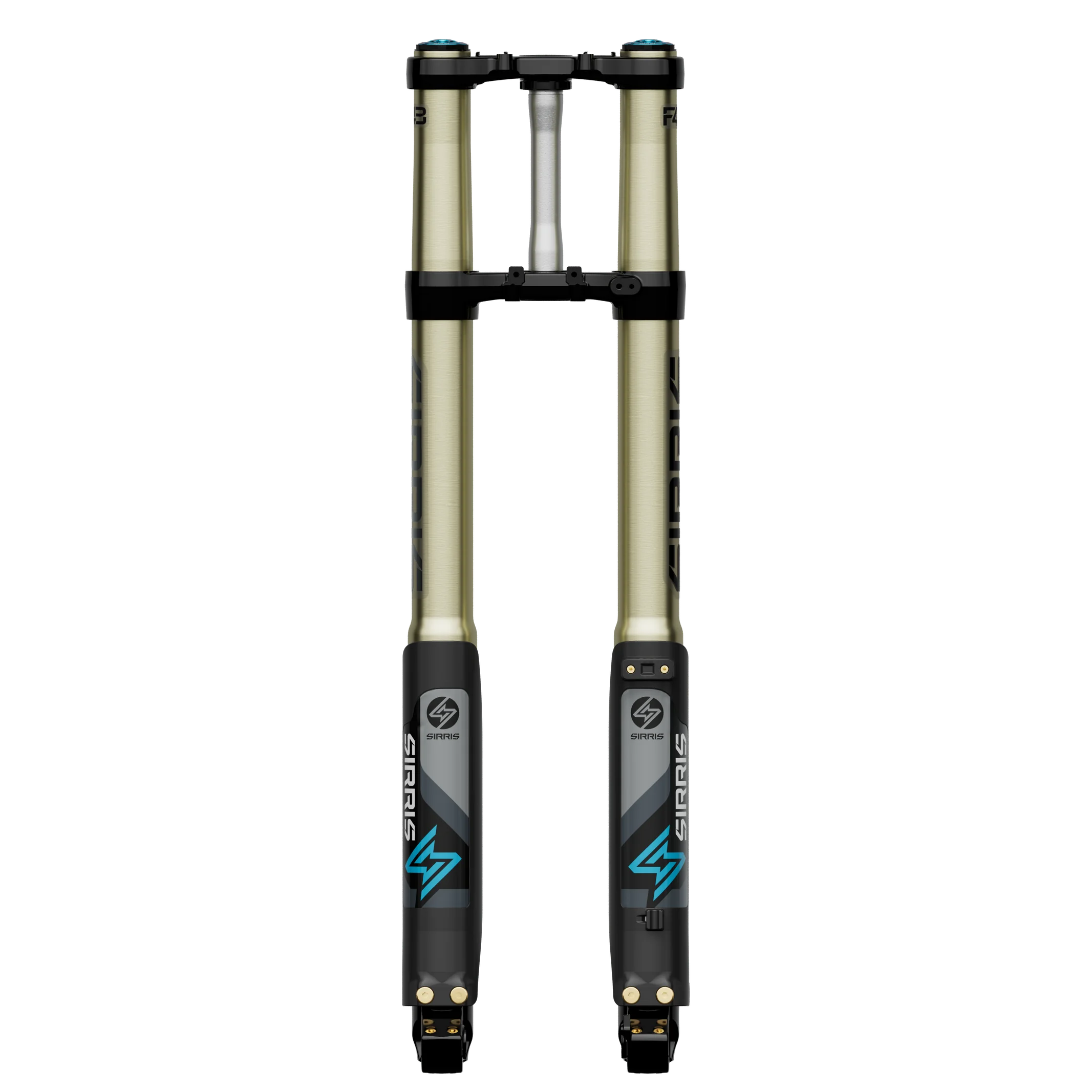

F43 FORK
43MM USD, 856MM X 246MM, 25MM OFFSET, SURRON ULTRA BEE SPEC
Architecture
Upside down fork
Travel
246 mm
Free length
856 mm
Fork weight, incl clamps and steerer
22 lbs / 10kg
Stanchions
Ø43, chrome-plated steel
Outer tubes
Seamless 7050 aluminum, type 3 hard anodized coating
Drop outs
Forged 6061 aluminum, type 3 hard anodized coating
Triple clamps
Forged 6061 aluminum, type 3 hard anodized coating
Steer tube
Seamless 7050 aluminum, type 2 anodized coating
Damping
Symmetrical, adjustable closed cartridge with spring backed IFP
Damper bodies
Seamless 7050 aluminum, type 3 hard anodized coating
Rebound
Dual side high tensile steel spring, adjustable
Adjusters
External compression and rebound adjustment
Seals
NBR
Guards
High impact PP, 210-degree wraparound

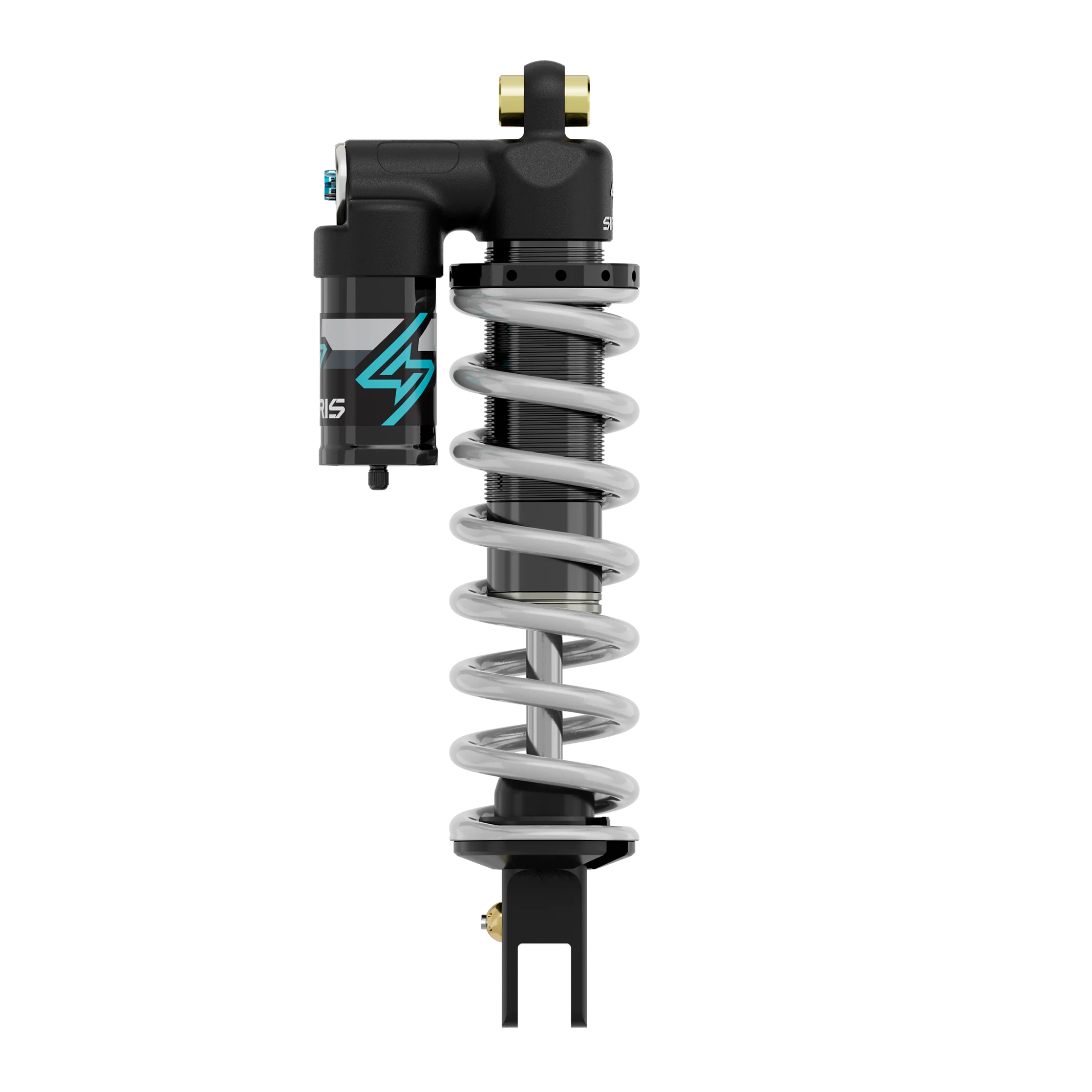

R46 SHOCK
46MM PISTON, 320MM X 85MM, SURRON ULTRA BEE SPEC
Architecture
Piggyback, steel spring
Stroke
85 mm
Length
320 mm
Weight
3.9 lbs / 1.76 kg without spring
Piston
High flow Ø46 mm, CNC 6061 billet aluminum, type 3 hard anodized coating
Piston band
Hard band
Shaft
Ø16 mm OD chrome-plated, induction hardened steel, hollow, Ø 5.5 mm ID
Shock body
Seamless 6061 aluminum, type 3 hard anodized coating, ACME thread
Spring retainer
Seamless 6061 aluminum, type 3 hard anodized coating, ACME thread, with locking feature, manual adjust
Bottom out
MCU bumper
Top out
Rubber bumper
Damping
Tunable compression and rebound
Reservoir
Pressurized with floating piston
Adjusters
External compression and rebound adjustment
Seals
NBR
STOCK ULTRA BEE TRIANGLE FITMENT:
For guaranteed fitment on your Surron Ultra Bee, we highly recommend the Sirris rear triangle installed during the shock installation procedure.
The Sirris Shock is designed to offer the maximum possible piston size and still fit within the stock linkage. Tolerances on each stock Ultra Bee vary. Light contact between spring OD and stock triangle may occur. We highly recommend our higher clearance triangle to prevent this.
WARNING: Some aftermarket triangle links may have significant interference that could damage the shock and/or triangle. It’s important to check clearance as you assemble and cycle the suspension. Do not install Sirris shock if any interference is detected. Failure to properly install the shock with proper triangle can lead to a loss of control of the motorcycle which can result in SERIOUS INJURY OR DEATH.
